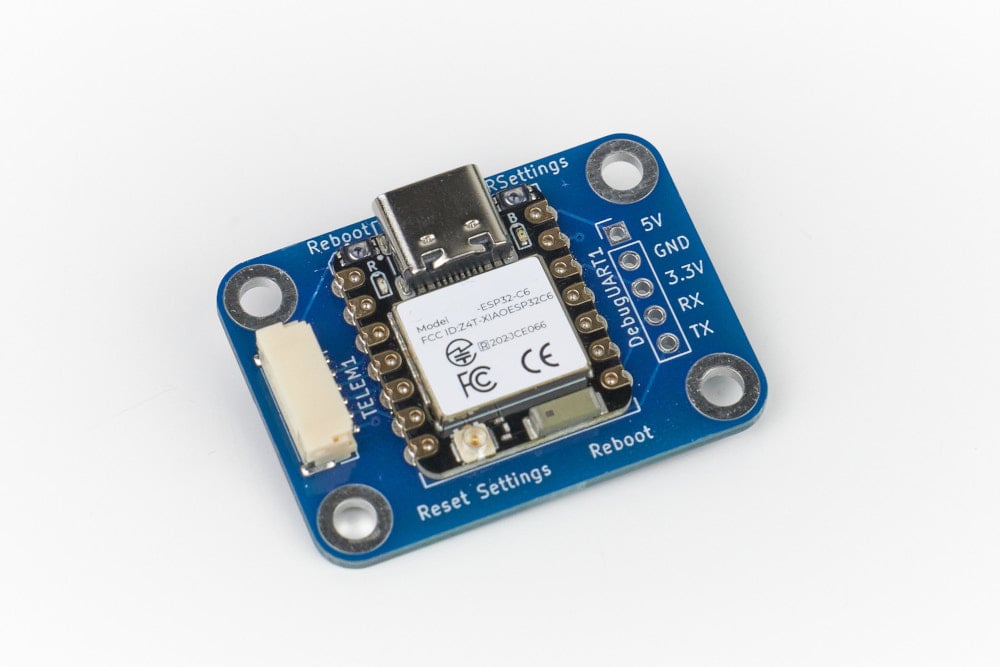

Official DroneBridge ESP32-C6 Board
Official hardware for reliable DroneBridge integrations
The official DroneBridge for ESP32C6 board. A simple plug&play solution for Wi-Fi or Bluetooth LE telemetry for ArduPilot and PX4 based drones. The current release of DroneBridge for ESP32 is tested with the board.
This board comes with an onboard antenna, no additional external antenna included. An external antenna can be connected, it is sold separately. Designed for production-ready DroneBridge installations and follows the DS-009 Pixhawk connector expectations for fast integration.
Highlights
- Official test board for development ensuring high compatibility with all current and likely future releases
- Detailed documentation explicitly for the board described in the official wiki
- Smaller and lighter than comparable solutions
- Current version of DroneBridge for ESP32 pre-installed, configured and tested
- Secure and reliable connector using JST-GH according to the Pixhawk standard
- Onboard antenna and optional external antenna support for more range
- Designed for predictable setup and repeatable deployment
- Support for Wi-Fi 6

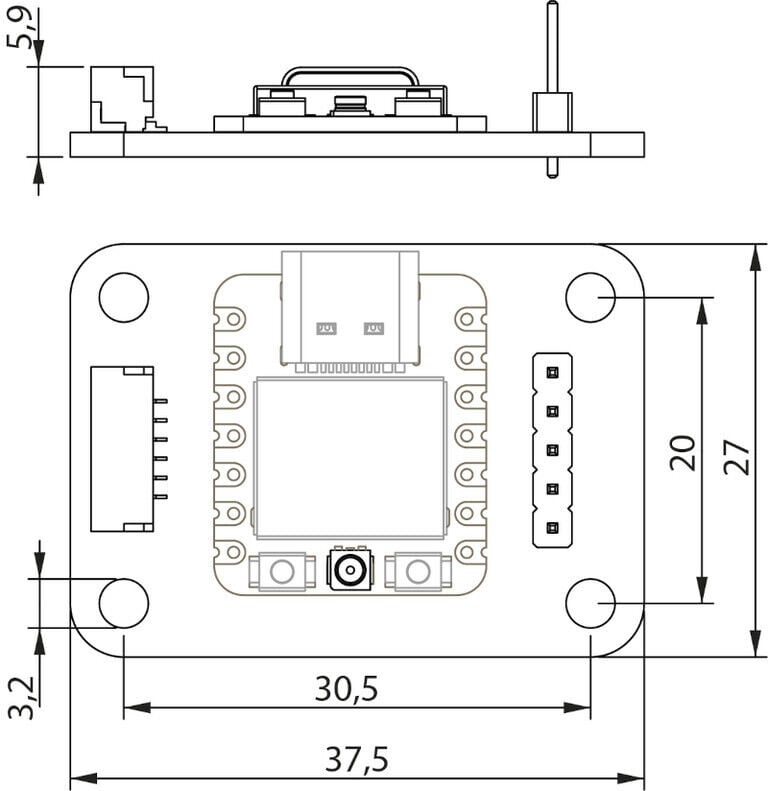

Weight: 8g (incl. cable) Dimensions: 37.5 mm x 27 mm Mounting holes: Diameter: 3.2mm - Distance: 30.5mm x 20mm
In the Box

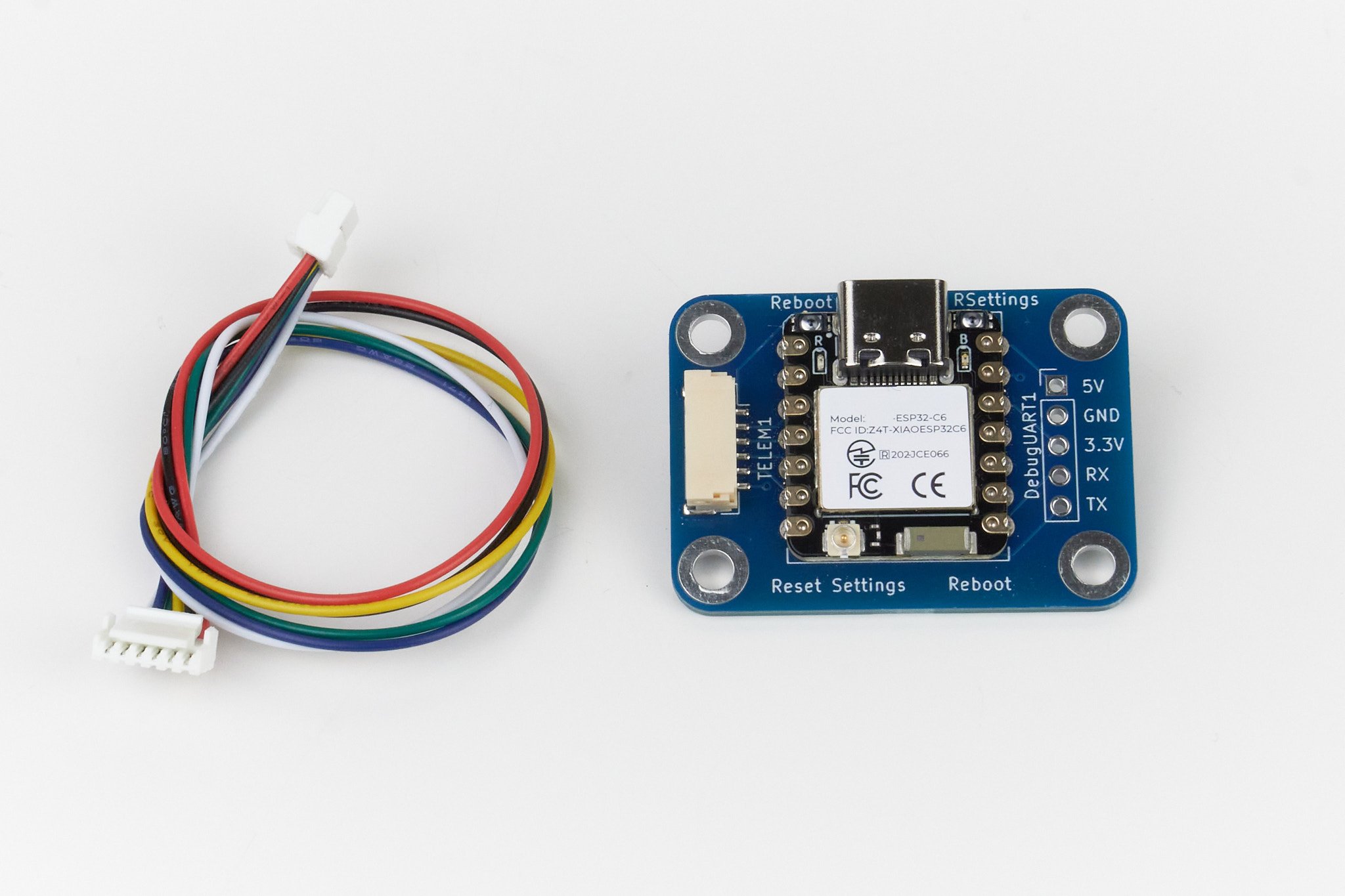

- 1x DroneBridge for ESP32 HW v1.2 featuring ESP32C6
- 1x 15cm 6-pin JST-GH cable (Pixhawk telemetry cable)
Shipping and Support
All orders ship from Germany. Shipping rates are calculated during checkout based on your destination country and selected shipping option. If you need a formal quote for B2B procurement or express shipping, contact office@foremost-systems.com.
Information regarding international shipping (outside the european economic zone): You, the buyer, are responsible for any VAT, tariff, duty, taxes, handling fees, customs clearance charges, etc. required by your country for importing goods. I do not collect this beforehand, and cannot give you an estimate of the cost - charges vary around the world.
